IEC 60092标准MariSig阻燃仪表&控制电缆
MRE-2XCH 150/250V XLPE绝缘,LSOH(SHF1)护套,铠装阻燃仪表&控制缆(多对/多三线组)

IEC 60092标准MariSig阻燃仪表&控制电缆

应用

该铠装电缆适用于船体上任何位置的固定安装,符合IEC 60092-352标准。该电缆阻燃、低压、无卤,适合客船及其他商业船只的安装。

标准

IEC 60092-350/351/376/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

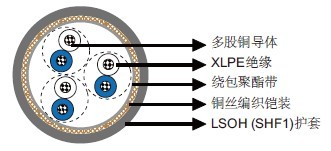

结构

导体:Class 2多股铜导体。
绝缘:XLPE。
成缆单元:对/三线组。
内衬层:绕包聚酯带。
铠装:铜丝编织。
外护套:LSOH(SHF1)。SHF2可选。

线芯识别

对:白/蓝色印有对数及芯数。
三线组:白/蓝/红色印有三线组数。

机械和热性能

固定安装弯曲半径:6×OD
温度范围:-30℃ ~ +80℃

尺寸和重量

订货代码 结构
芯数×截面积
(mm²)
标称绝缘厚度
mm
标称护套厚度
mm
标称外径
mm
标称重量
kg/km
MRE-2XCH-1P0.75 1×2×0.75 0.5 1.2 8.1 90
MRE-2XCH-2P0.75 2×2×0.75 0.5 1.3 9.3 130
MRE-2XCH-3P0.75 3×2×0.75 0.5 1.4 12.4 200
MRE-2XCH-4P0.75 4×2×0.75 0.5 1.4 13.1 230
MRE-2XCH-5P0.75 5×2×0.75 0.5 1.8 15.2 320
MRE-2XCH-6P0.75 6×2×0.75 0.5 1.8 16.1 350
MRE-2XCH-7P0.75 7×2×0.75 0.5 1.8 16.1 370
MRE-2XCH-8P0.75 8×2×0.75 0.5 1.9 17.2 420
MRE-2XCH-10P0.75 10×2×0.75 0.5 1.9 19.1 500
MRE-2XCH-12P0.75 12×2×0.75 0.5 2.0 20.0 560
MRE-2XCH-14P0.75 14×2×0.75 0.5 2.0 20.6 610
MRE-2XCH-16P0.75 16×2×0.75 0.5 2.1 22.2 690
MRE-2XCH-19P0.75 19×2×0.75 0.5 2.1 23.6 790
MRE-2XCH-20P0.75 20×2×0.75 0.5 2.1 23.6 800
MRE-2XCH-24P0.75 24×2×0.75 0.5 2.2 26.8 980
MRE-2XCH-30P0.75 30×2×0.75 0.5 2.3 29.1 1160
MRE-2XCH-37P0.75 37×2×0.75 0.5 2.4 31.1 1360
MRE-2XCH-1P1.0 1×2×1.0 0.5 1.3 8.7 110
MRE-2XCH-2P1.0 2×2×1.0 0.5 1.3 9.7 150
MRE-2XCH-3P1.0 3×2×1.0 0.5 1.4 13.2 230
MRE-2XCH-4P1.0 4×2×1.0 0.5 1.8 14.6 310
MRE-2XCH-5P1.0 5×2×1.0 0.5 1.8 16.1 360
MRE-2XCH-6P1.0 6×2×1.0 0.5 1.9 17.3 420
MRE-2XCH-7P1.0 7×2×1.0 0.5 1.9 17.3 440
MRE-2XCH-8P1.0 8×2×1.0 0.5 1.9 18.3 490
MRE-2XCH-10P1.0 10×2×1.0 0.5 2.0 20.5 590
MRE-2XCH-12P1.0 12×2×1.0 0.5 2.0 21.3 660
MRE-2XCH-14P1.0 14×2×1.0 0.5 2.1 22.2 730
MRE-2XCH-16P1.0 16×2×1.0 0.5 2.1 23.7 820
MRE-2XCH-19P1.0 19×2×1.0 0.5 2.2 25.4 940
MRE-2XCH-20P1.0 20×2×1.0 0.5 2.2 25.4 960
MRE-2XCH-24P1.0 24×2×1.0 0.5 2.3 28.9 1170
MRE-2XCH-30P1.0 30×2×1.0 0.5 2.4 31.3 1400
MRE-2XCH-37P1.0 37×2×1.0 0.5 2.5 33.5 1640
MRE-2XCH-1P1.5 1×2×1.5 0.6 1.3 9.7 140
MRE-2XCH-2P1.5 2×2×1.5 0.6 1.3 10.9 190
MRE-2XCH-3P1.5 3×2×1.5 0.6 1.8 15.7 340
MRE-2XCH-4P1.5 4×2×1.5 0.6 1.9 16.8 400
MRE-2XCH-5P1.5 5×2×1.5 0.6 1.9 18.6 480
MRE-2XCH-6P1.5 6×2×1.5 0.6 2.0 20.0 550
MRE-2XCH-7P1.5 7×2×1.5 0.6 2.0 20.0 590
MRE-2XCH-8P1.5 8×2×1.5 0.6 2.0 21.2 650
MRE-2XCH-10P1.5 10×2×1.5 0.6 2.1 23.8 800
MRE-2XCH-12P1.5 12×2×1.5 0.6 2.2 24.9 900
MRE-2XCH-14P1.5 14×2×1.5 0.6 2.2 25.8 990
MRE-2XCH-16P1.5 16×2×1.5 0.6 2.3 27.8 1130
MRE-2XCH-19P1.5 19×2×1.5 0.6 2.3 29.6 1290
MRE-2XCH-20P1.5 20×2×1.5 0.6 2.3 29.6 1320
MRE-2XCH-24P1.5 24×2×1.5 0.6 2.5 33.9 1630
MRE-2XCH-30P1.5 30×2×1.5 0.6 2.8 37.3 2040
MRE-2XCH-37P1.5 37×2×1.5 0.6 2.9 39.9 2390
MRE-2XCH-1T0.75 1×3×0.75 0.5 1.3 8.7 110
MRE-2XCH-2T0.75 2×3×0.75 0.5 1.4 12.6 210
MRE-2XCH-3T0.75 3×3×0.75 0.5 1.4 13.3 240
MRE-2XCH-4T0.75 4×3×0.75 0.5 1.8 15.2 330
MRE-2XCH-5T0.75 5×3×0.75 0.5 1.9 16.8 400
MRE-2XCH-6T0.75 6×3×0.75 0.5 1.9 18.6 470
MRE-2XCH-7T0.75 7×3×0.75 0.5 1.9 18.6 490
MRE-2XCH-8T0.75 8×3×0.75 0.5 2.0 20.0 560
MRE-2XCH-10T0.75 10×3×0.75 0.5 2.1 22.5 690
MRE-2XCH-12T0.75 12×3×0.75 0.5 2.1 23.6 770
MRE-2XCH-14T0.75 14×3×0.75 0.5 2.1 24.5 850
MRE-2XCH-16T0.75 16×3×0.75 0.5 2.2 26.1 950
MRE-2XCH-19T0.75 19×3×0.75 0.5 2.3 28.2 1100
MRE-2XCH-20T0.75 20×3×0.75 0.5 2.3 28.6 1140
MRE-2XCH-24T0.75 24×3×0.75 0.5 2.4 31.1 1340
MRE-2XCH-30T0.75 30×3×0.75 0.5 2.5 34.3 1620
MRE-2XCH-32T0.75 32×3×0.75 0.5 2.5 35.4 1720
MRE-2XCH-1T1.0 1×3×1.0 0.5 1.3 9.1 130
MRE-2XCH-2T1.0 2×3×1.0 0.5 1.4 13.4 240
MRE-2XCH-3T1.0 3×3×1.0 0.5 1.8 14.9 320
MRE-2XCH-4T1.0 4×3×1.0 0.5 1.8 16.1 380
MRE-2XCH-5T1.0 5×3×1.0 0.5 1.9 17.8 460
MRE-2XCH-6T1.0 6×3×1.0 0.5 2.0 20.0 560
MRE-2XCH-7T1.0 7×3×1.0 0.5 2.0 20.0 590
MRE-2XCH-8T1.0 8×3×1.0 0.5 2.0 21.3 660
MRE-2XCH-10T1.0 10×3×1.0 0.5 2.1 24.0 810
MRE-2XCH-12T1.0 12×3×1.0 0.5 2.2 25.4 920
MRE-2XCH-14T1.0 14×3×1.0 0.5 2.2 26.4 1020
MRE-2XCH-16T1.0 16×3×1.0 0.5 2.3 28.1 1150
MRE-2XCH-19T1.0 19×3×1.0 0.5 2.4 30.3 1330
MRE-2XCH-20T1.0 20×3×1.0 0.5 2.4 30.8 1380
MRE-2XCH-24T1.0 24×3×1.0 0.5 2.5 33.5 1620
MRE-2XCH-30T1.0 30×3×1.0 0.5 2.8 37.5 2060
MRE-2XCH-32T1.0 32×3×1.0 0.5 2.9 38.9 2190
MRE-2XCH-1T1.5 1×3×1.5 0.6 1.3 10.2 160
MRE-2XCH-2T1.5 2×3×1.5 0.6 1.8 16.0 350
MRE-2XCH-3T1.5 3×3×1.5 0.6 1.9 17.1 430
MRE-2XCH-4T1.5 4×3×1.5 0.6 1.9 18.6 510
MRE-2XCH-5T1.5 5×3×1.5 0.6 2.0 20.6 620
MRE-2XCH-6T1.5 6×3×1.5 0.6 2.1 23.2 750
MRE-2XCH-7T1.5 7×3×1.5 0.6 2.1 23.2 800
MRE-2XCH-8T1.5 8×3×1.5 0.6 2.2 24.9 900
MRE-2XCH-10T1.5 10×3×1.5 0.6 2.3 28.1 1110
MRE-2XCH-12T1.5 12×3×1.5 0.6 2.3 29.6 1260
MRE-2XCH-14T1.5 14×3×1.5 0.6 2.4 31.0 1410
MRE-2XCH-16T1.5 16×3×1.5 0.6 2.5 33.0 1590
MRE-2XCH-19T1.5 19×3×1.5 0.6 2.5 35.4 1830
MRE-2XCH-20T1.5 20×3×1.5 0.6 2.8 36.7 2010
MRE-2XCH-24T1.5 24×3×1.5 0.6 2.9 39.9 2360
MRE-2XCH-30T1.5 30×3×1.5 0.6 3.1 44.2 2880
MRE-2XCH-32T1.5 32×3×1.5 0.6 3.1 45.7 3060
