MIL-W-5086/2 Unshielded Aircraft Wire
Application and Description
These PVC insulated single-core MIL-W-5086/2 wires are used in electrical or electronic applications. These cables should be considered for use in any application where it may be exposed to chemicals, but-through, impact, abrasion, or other abuse. This wire offers excellent resistance to moisture, fuels, hydraulic fluids, and other common industrial solvents.

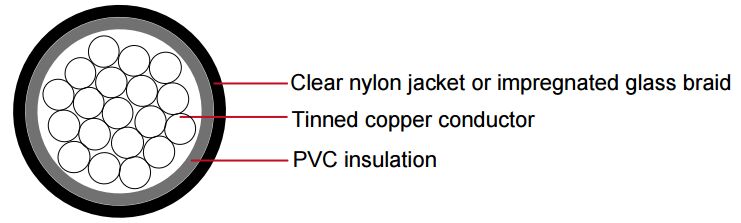

Construction
| Conductor |
Stranded soft annealed tinned copper |
| Insulation |
Polyvinyl chloride (PVC) |
| Jacket |
22 AWG – 10 AWG: Clear nylon
8 AWG – 4/0 AWG: Impregnated glass braid |
Characteristics
| Temperature Rating |
105°C |
| Voltage Rating |
600 volts |
| Mil-Spec Wire |
|
| Color Code |
10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT) |
Dimensions and Weight
| AWG Size |
Conductor Stranding |
Conductor Diam. |
Nom. O.D. |
Approx
LBS/
MFT |
| |
|
in |
mm |
in |
mm |
|
| 22 |
19/34 |
0.032 |
0.813 |
0.073 |
1.854 |
4.2 |
| 20 |
19/32 |
0.041 |
1.041 |
0.083 |
2.108 |
6.2 |
| 18 |
19/30 |
0.051 |
1.295 |
0.093 |
2.362 |
8.6 |
| 16 |
19/29 |
0.059 |
1.499 |
0.103 |
2.616 |
10.7 |
| 14 |
19/27 |
0.072 |
1.829 |
0.126 |
3.200 |
16.7 |
| 12 |
37/28 |
0.093 |
2.362 |
0.143 |
3.632 |
25.0 |
| 10 |
37/26 |
0.112 |
2.845 |
0.189 |
4.801 |
40.1 |
| 8 |
133/29 |
0.169 |
4.293 |
0.239 |
6.071 |
66.0 |
| 6 |
33/27 |
0.213 |
5.410 |
0.293 |
7.442 |
104.6 |
| 4 |
133/25 |
0.269 |
6.833 |
0.349 |
8.865 |
160.1 |
| 2 |
665/30 |
0.327 |
8.306 |
0.420 |
10.668 |
245.0 |
| 1 |
817/30 |
0.380 |
9.652 |
0.467 |
11.862 |
304.0 |
| 1/0 |
1045/30 |
0.413 |
10.490 |
0.525 |
13.335 |
392.0 |
| 2/0 |
1330/30 |
0.475 |
12.065 |
0.587 |
14.910 |
493.0 |
| 3/0 |
1661/30 |
0.535 |
13.589 |
0.640 |
16.256 |
604.0 |
| 4/0 |
2104/30 |
0.600 |
15.240 |
0.725 |
18.415 |
770.0 |
