MS 27110 (Mil-W-8777 Wire)
Application and Description
These silicone rubber primary insulated single-core MS 27110 (Mil-W-8777 Wire) cables are used in
aircraft and missiles using any combination of electrical loading and ambient temperature. It has low
moisture absorption and generally good resistance to chemicals.

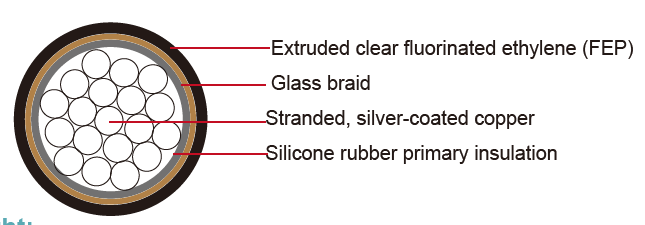

Construction
| Conductor |
Stranded, silver-coated copper conductor |
| Insulation |
Silicone rubber primary insulation |
| Braid |
The glass braid of tightly woven glass fibers impregnated with silicone or teflon |
| Jacket |
extruded clear fluorinated ethylene (FEP) |
Characteristics
| Temperature Range |
200°C |
| Voltage Rating |
600 volts |
| MS27110
MIL-W-8777
MIL-DTL-8777 |
|
Dimensions and Weight
| AWG Size |
Conductor Stranding |
Jacket Thick |
Max. O.D. |
Min. O.D. |
Max. Resistance (Ohm/1000' @ 20°C) |
Approx LBS/MFT |
| |
|
|
in |
mm |
in |
mm |
? |
? |
| 22 |
19/34 |
0.007 |
0.090 |
2.286 |
0.082 |
2.083 |
15.20 |
7.1 |
| 20 |
19/32 |
0.007 |
0.01 |
0.254 |
0.092 |
2.337 |
9.42 |
9.0 |
| 18 |
19/30 |
0.007 |
0.112 |
2.845 |
0.104 |
2.642 |
6.03 |
12.1 |
| 16 |
19/29 |
0.007 |
0.120 |
3.048 |
0.112 |
2.845 |
4.76 |
14.3 |
| 14 |
19/27 |
0.008 |
0.145 |
3.683 |
0.137 |
3.480 |
2.99 |
21.5 |
| 12 |
19/25 |
0.008 |
0.165 |
4.191 |
0.155 |
3.937 |
1.88 |
30.5 |
| 10 |
49/27 |
0.008 |
0.199 |
5.055 |
0.189 |
4.801 |
1.16 |
48.0 |
| 8 |
133/29 |
.0100 |
0.25 |
6.350 |
0.236 |
5.994 |
0.70 |
75.0 |
| 6 |
133/27 |
0.010 |
0.299 |
7.595 |
0.285 |
7.239 |
0.44 |
114.0 |
| 4 |
133/25 |
0.010 |
0.364 |
9.246 |
0.35 |
8.890 |
0.28 |
173.0 |
